Navimow Terranox CM240M1 Commercial Robotic Lawn Mower | 6 Acres
$6,999.00
Navimow Terranox CM240M1 Commercial Robotic Lawn Mower is engineered for large-scale commercial properties that demand maximum coverage, runtime, and operational efficiency. Built by Segway Navimow, the CM240M1 combines powerful all-wheel drive, antenna-free RTK navigation, and centralized fleet management to replace traditional mowing equipment across expansive sites.
Description
Navimow Terranox CM240M1 Commercial Robotic Lawn Mower is designed for demanding commercial environments such as golf courses, large municipal parks, sports complexes, and corporate campuses. Supporting properties up to 6 acres, it delivers continuous, autonomous mowing with reduced labor, lower operating costs, and consistent turf quality.
Commercial AWD Performance
The CM240M1 features a four-wheel drive system with dual independent steering motors, enabling confident operation on steep slopes up to 84% (40°) and across uneven or compacted terrain. This ensures reliable traction and stability where conventional mowers struggle.
Wire-Free Installation & Automatic Mapping
EFLS™ NRTK technology (Network RTK + 360° Vision + VIO) eliminates the need for boundary wires or external antennas. Automatic mapping allows fast deployment and easy reconfiguration across large, multi-zone commercial sites.

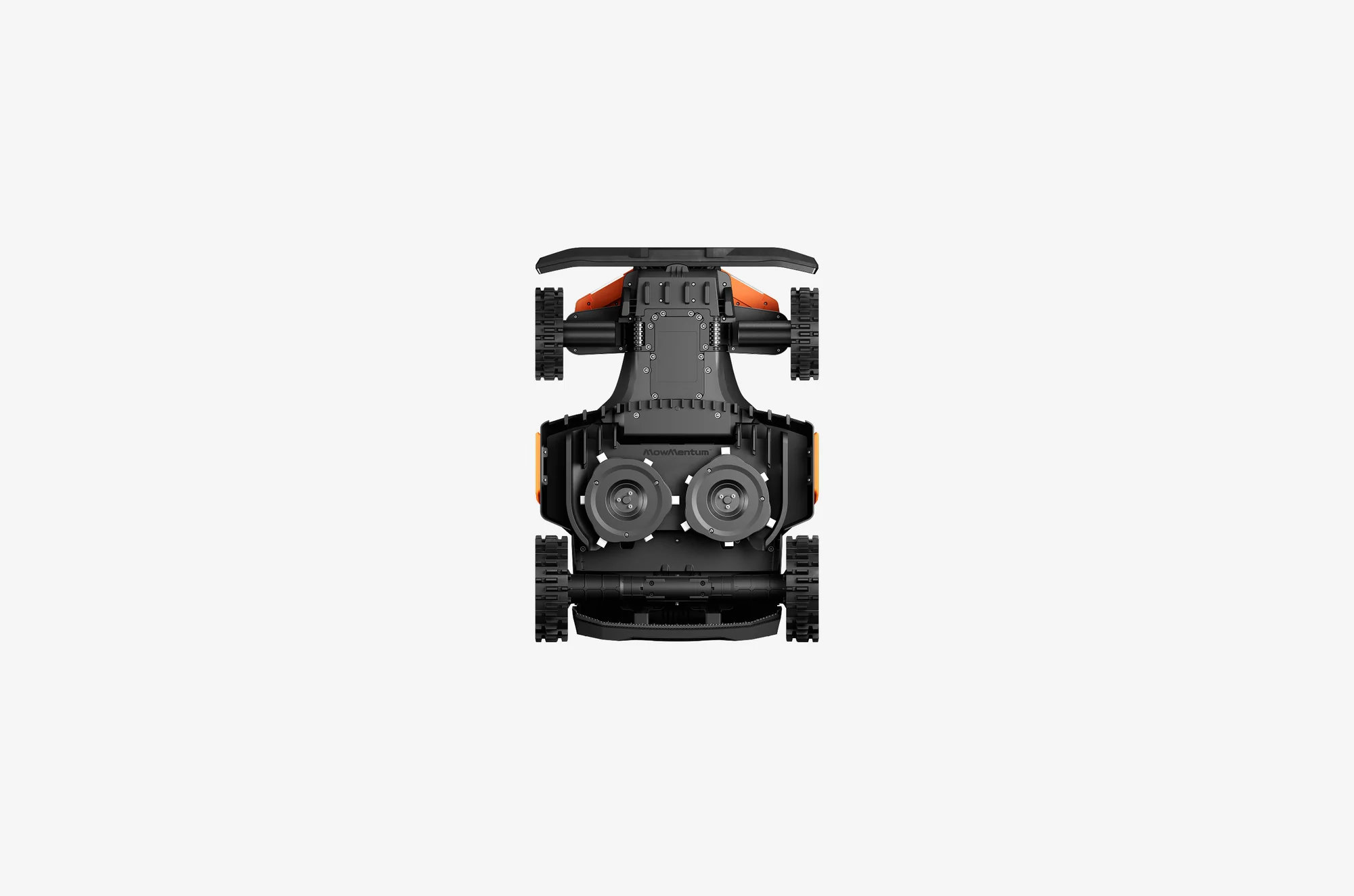

High-Capacity Cutting System
A dual-disc cutting system with 12 blades and a 17-inch cutting width delivers clean, professional results across all grass types. Increased battery capacity supports extended runtime, enabling the CM240M1 to maintain large areas efficiently throughout the day.
VisionFence™ 360° Obstacle Avoidance
Panoramic VisionFence™ technology uses a 360° RGB camera and ToF sensors to detect and avoid more than 200 obstacle types, ensuring safe operation around people, equipment, and infrastructure in active commercial settings.
Quiet, Clean Commercial Operation
Despite its size and capability, the CM240M1 operates at just 68 dB(A). With zero direct emissions, it reduces noise pollution, fuel costs, and environmental impact compared to gas or diesel-powered equipment.
Fleet Management with NavimowFleet™
NavimowFleet™ enables centralized fleet control through a mobile app or web portal. One operator can monitor performance, assign tasks, edit maps, and manage multiple CM240M1 units remotely, improving efficiency and operational oversight.
Warranty Coverage
-
2-year device and charging station warranty
-
1-year battery warranty
Recommended For
-
Golf courses
-
Large municipal and city green spaces
-
Sports complexes and athletic fields
-
Corporate and institutional campuses
-
Commercial properties up to 6 acres
Navimow Terranox Specifications
| Specification | CM120M1 | CM240M1 |
|---|---|---|
| Manufacturer | Segway Navimow | Segway Navimow |
| Recommended Coverage | Up to 3 acres | Up to 6 acres |
| Drive System | 4WD with dual independent steering motors | 4WD with dual independent steering motors |
| Maximum Slope | 84% (40°) | 84% (40°) |
| Navigation System | EFLS™ NRTK (RTK + 360° Vision + VIO) | EFLS™ NRTK (RTK + 360° Vision + VIO) |
| Boundary Wires Required | No | No |
| Auto Mapping | Yes | Yes |
| Obstacle Avoidance | VisionFence™ (360° RGB + ToF) | VisionFence™ (360° RGB + ToF) |
| Noise Level | 68 dB(A) | 68 dB(A) |
| Protection Rating | IP66 | IP66 |
| Dimensions (L × W × H) | 33.5 × 24.0 × 13.8 in | 33.5 × 24.0 × 13.8 in |
| Weight | 65.2 lbs | 66.02 lbs |
| Battery Capacity | 20 Ah / 432 Wh | 25 Ah / 540 Wh |
| Charging Time | ~145 minutes | ~180 minutes |
| Mowing Time per Charge | ~145 minutes | ~180 minutes |
| Continuous Coverage | 1.8 acres / 24 hrs | 2 acres / 24 hrs |
| Cutting Width | 17 in | 17 in |
| Cutting Height | 0.75 – 4 in (0.25 in adjustment) | 0.75 – 4 in (0.25 in adjustment) |
| Cutting System | Dual discs, 12 blades | Dual discs, 12 blades |
| Floating Cut System | Yes | Yes |
| Multi-Zone Management | Up to 120 zones | Up to 120 zones |
| Connectivity | Bluetooth, Wi-Fi, Cellular | Bluetooth, Wi-Fi, Cellular |
| Screen Display | 3.5 in LCD | 3.5 in LCD |
| OTA Updates | Yes | Yes |
| Warranty (Device & Dock) | 2 Years | 2 Years |
| Warranty (Battery) | 1 Year | 1 Year |
Professional Installation & Demo Available
Commercial deployment, site planning, and fleet setup are available through authorized dealers such as The Green Team.
For pricing, installation, or demos you can Contact Us, or Learn More.
Spec Sheets/Manuals
None available. Please contact us for help.
