OKT 1×4 LED Surface Mount Panel – 20W/30W/40W Selectable, 3000K/3500K/4000K CCT (2 Pack)

Description

2-PACK 1×4 LED Surface Mount Panel lighting from OKT provides a clean, modern alternative to traditional fluorescent 1×4 fixtures while giving installers greater flexibility through selectable wattage and selectable color temperature. The  model combines a low-profile design with field-adjustable settings, making it suitable for a wide range of commercial, institutional and residential lighting applications.

Selectable 20W, 30W or 40W Output

Instead of stocking separate fixtures for different wattages, this OKT panel allows the desired power level to be selected from 20W, 30W or 40W. The selectable design makes it easier to match light output and energy consumption to the requirements of each room or project.

Use the lower wattage settings where less illumination is required or select the full 40W setting for spaces that need greater light output. This flexibility can also simplify inventory for contractors working on projects with several different lighting requirements.

Adjustable 3000K, 3500K and 4000K Color Temperature

The fixture also features three selectable color temperatures: 3000K, 3500K and 4000K.

• 3000K provides a warmer appearance suited to comfortable interior spaces.
• 3500K delivers a neutral white light that works well in offices and general-purpose areas.
• 4000K provides a cleaner, cooler white commonly used in commercial, educational and work environments.

The selectable CCT design allows the final color temperature to be chosen during installation rather than requiring a separate fixture for every lighting environment.

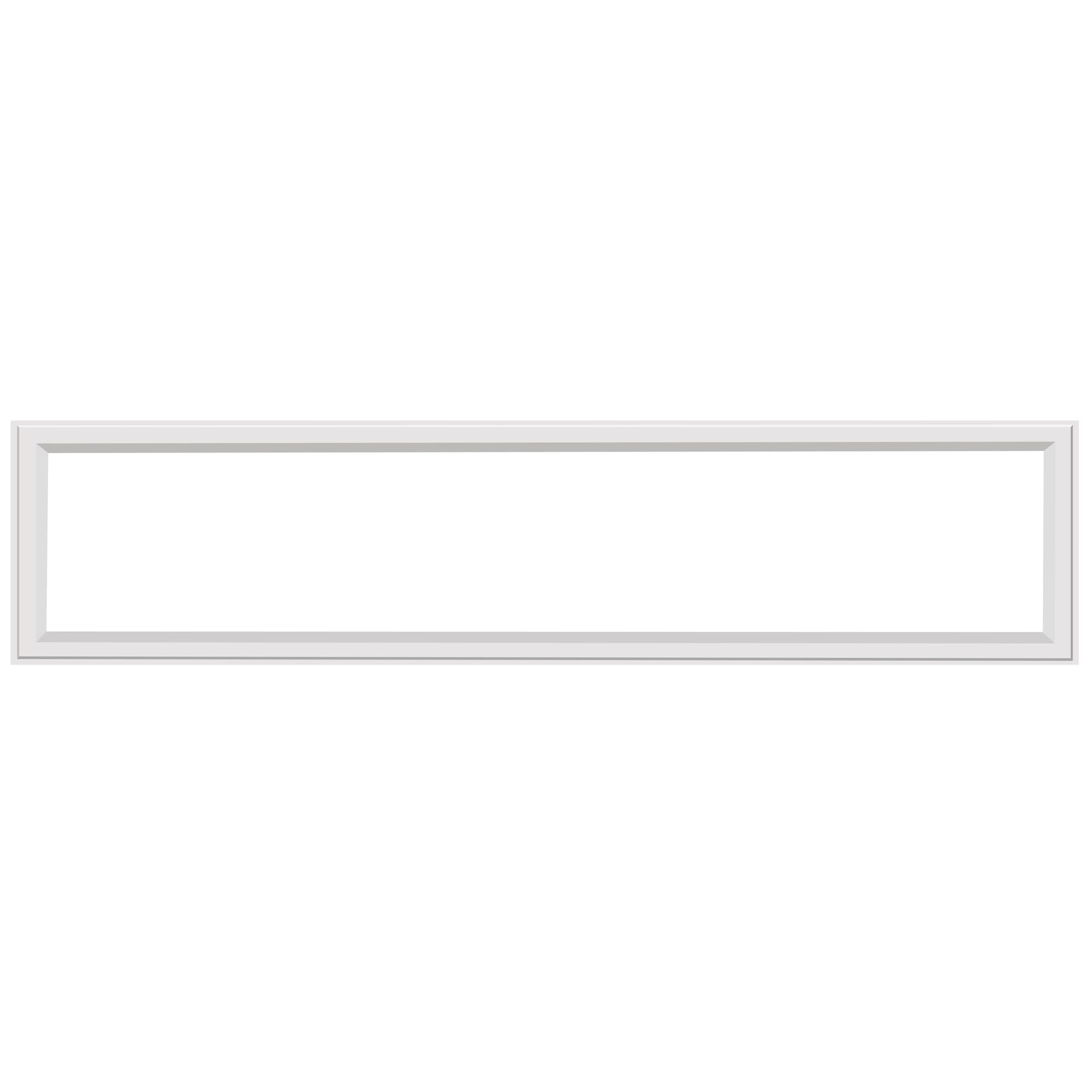

Slim 1×4 LED Panel Design

The OKT FS Series uses a clean, low-profile housing designed to provide an updated appearance compared with conventional fluorescent troffers and bulky surface-mounted fixtures.

The standard FS Series 1×4 enclosure measures approximately:

47.72″ L x 11.7″ W x 0.68″ H

At only about 0.68 inches thick, the panel is particularly useful where a streamlined fixture is desired or where installation space is limited.

0-10V Dimming

The panel supports 0-10V dimming, allowing compatible commercial dimming controls to adjust the light level as needed. Dimming can improve occupant comfort while providing additional opportunities to reduce lighting energy consumption when full output is unnecessary.

OKT’s FS Series documentation identifies compatibility with common commercial 0-10V dimmers, making the fixture suitable for many lighting control systems.

110-277V Multi-Voltage Operation

The 110-277V input range allows the same fixture to be used across many common North American commercial and residential electrical systems. This makes the panel a practical option for contractors, property managers and facility operators who work across projects with different supply voltages.

Designed for Long-Term LED Lighting

The OKT FS Series is designed for an L70 minimum life of 50,000 hours, helping reduce the maintenance associated with traditional fluorescent lamps and ballasts. The integrated LED design eliminates routine lamp replacement while providing consistent illumination across the face of the panel.

The fixture is backed by a 5-year manufacturer warranty.

Applications

The 1×4 LED Surface Mount Panel is well suited for a variety of interior lighting projects, including:

• Commercial offices
• Conference rooms
• Retail stores
• Schools and classrooms
• Hallways and corridors
• Healthcare facilities
• Apartment and condominium common areas
• Utility and work areas
• Renovation and retrofit projects
• General commercial lighting

Its selectable wattage and color temperature make it especially useful for property owners who want one fixture that can be configured for several different applications.

Key Specifications

The OKT 1×4 LED Surface Mount Panel is a versatile solution for new construction, renovations and LED lighting upgrades where contractors need a slim fixture with adjustable wattage, adjustable color temperature and commercial 0-10V dimming.
