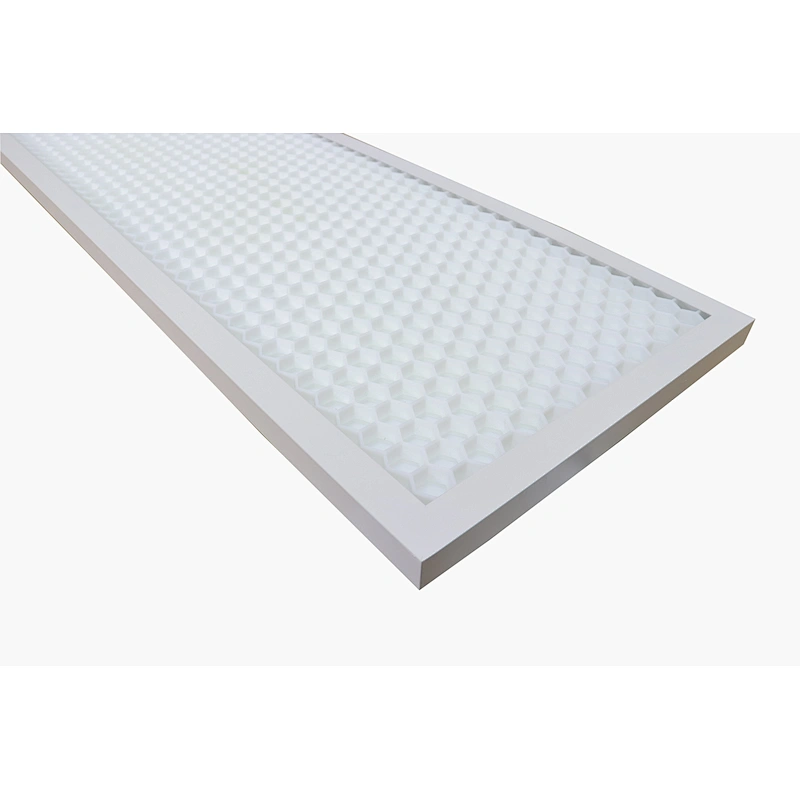

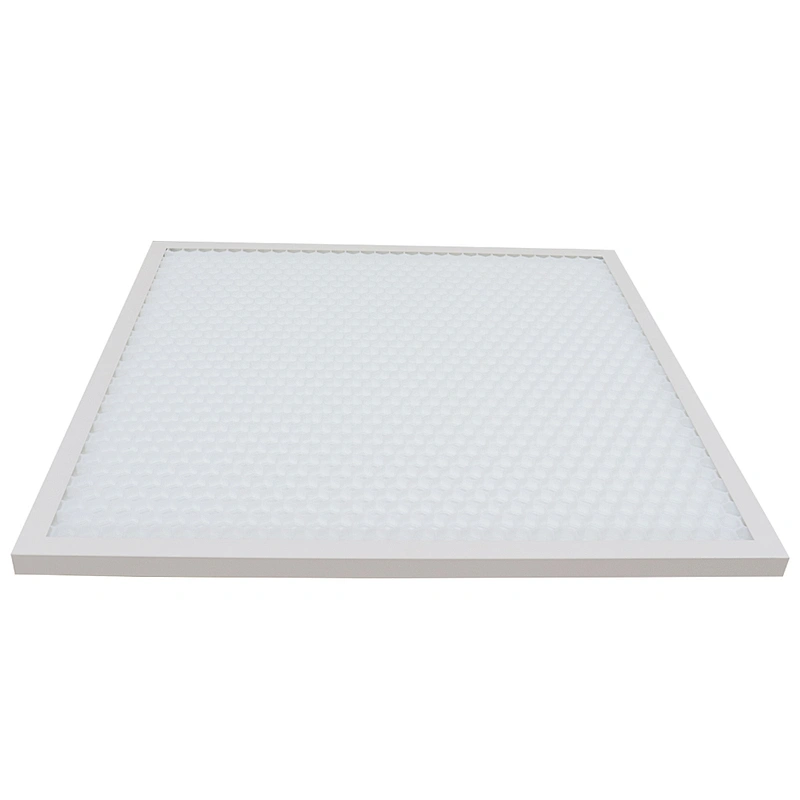

1×4 and 2×2 LED Honeycomb Panel / Dimmable 0-10V/ CCT Adjustable / Wattage Adjustable

Description

The HoneyComb LED Panel is designed to provide a superior lighting experience where comfort, performance, and energy efficiency meet. Built with advanced honeycomb grid technology, this panel ensures UGR<15 glare control, offering a smoother and more natural visual environment. Whether in offices, classrooms, hospitals, or museums, the HoneyComb LED Panel delivers clear, uniform illumination that enhances productivity and wellbeing.

Cutting-Edge Honeycomb Technology

Traditional LED panels often suffer from glare, which can cause discomfort, eye strain, and reduced concentration. The honeycomb grid design of this panel is engineered to minimize glare while maintaining a wide 80° beam angle. The result is bright, even light distribution with improved visual comfort. Tested across a 4×8 area, the HoneyComb LED Panel consistently achieves UGR<15, making it a best-in-class solution for environments where visual performance matters most.

CCT & Wattage Adjustable – One Fixture, Many Options

Flexibility is at the core of the HoneyComb LED Panel. With its built-in dipswitch, users can choose between:

• Three CCT options: 3500K (warm neutral), 4000K (neutral white), 5000K (cool white)

• Three power levels: 20W, 25W, or 30W

This 9-in-1 design eliminates the need to stock multiple panels for different lighting needs. Adjust the light color and brightness to suit changing requirements in offices, classrooms, healthcare settings, or galleries—all with a single versatile panel.

High Efficiency & Long Lifespan

The HoneyComb LED Panel offers up to 120 lumens per watt efficiency, reducing energy consumption without sacrificing brightness. Depending on the selected wattage, the panel produces up to 3600 lumens, delivering ample light output for a wide range of applications.

Built with premium components, including a PMMA light guide plate (UV resistant, 10-year life) and a SELV isolated driver, the panel ensures safe, stable, and long-lasting operation. With 50,000+ hours rated life and a 5-year warranty, the HoneyComb LED Panel is a reliable, low-maintenance investment for any commercial space.

Flicker-Free Lighting for Health & Productivity

Unlike low-quality panels that can introduce subtle flicker, the HoneyComb LED Panel is completely flicker-free. This feature reduces eye fatigue and headaches, creating a healthier, more comfortable environment for students, staff, patients, and professionals.

Technical Highlights

• Adjustable Wattage: 20W / 25W / 30W

• Adjustable CCT: 3500K / 4000K / 5000K

• UGR Rating: <15 for superior glare control

• Efficacy: Up to 120 lm/W

• CRI: 80+

• Voltage: 120–277Vac standard

• Power Factor: >0.95

• THD: <20%

• Dimming: 0-10V, 10%–100% range

• Lifetime: L70B30 >100,000 hours | L90B10 >50,000 hours

• Warranty: 5 years

Build & Installation

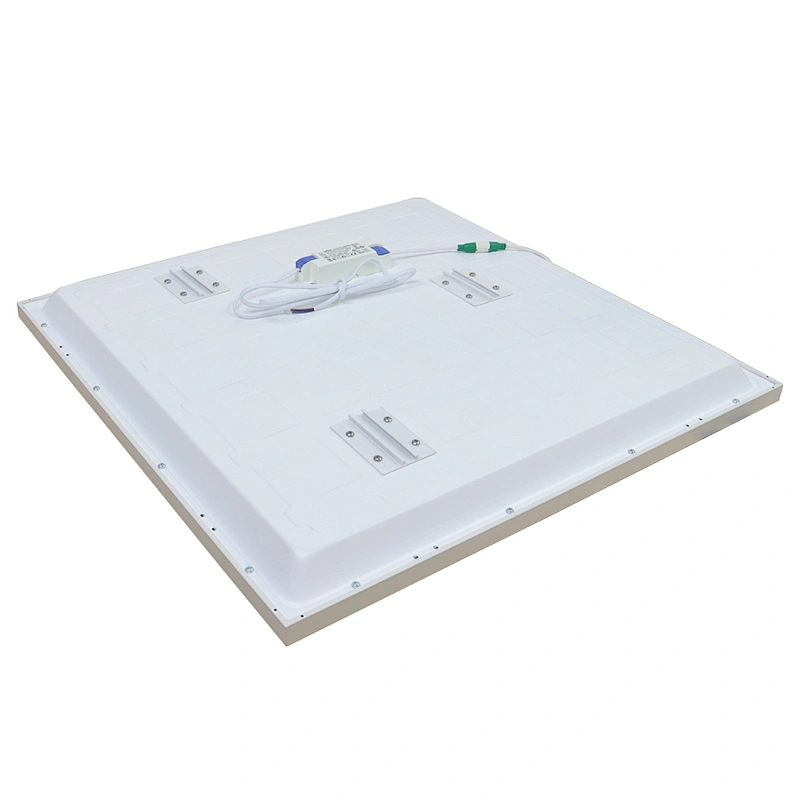

The HoneyComb LED Panel is constructed with a durable aluminum frame, white painted steel back cover, and sealed optical module that requires no internal cleaning. Designed for versatility, it can be installed in:

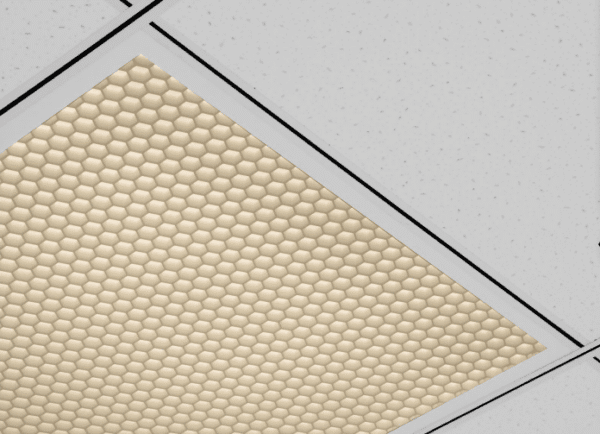

• Exposed T-bar ceilings (standard recessed mount)

• Surface-mounted frames

• Wire suspension kits

• Recessed plasterboard grids

This flexibility makes it suitable for new builds and retrofits alike.

Ideal Applications

• Offices & Conference Rooms – Reduce glare for computer work, presentations, and meetings.

• Schools & Universities – Improve focus and comfort in classrooms and lecture halls.

• Hospitals & Healthcare Facilities – Provide clean, flicker-free light for staff and patients.

• Museums & Galleries – Showcase exhibits with glare-controlled, high-CRI illumination.
