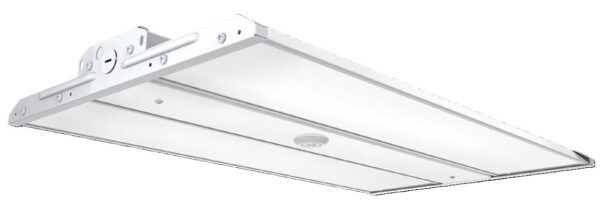

Linear LED Highbay featuring Power and Color Select, 2ft Long, 215W/ 175W/ 135W, 120-277V Input, Frosted Lens, 4000K/ 5000K, 0-10V Dimmable, Premium Series

Description

KT-HBLED215PS-2FB-8CSD-VDIM-P

2′ LED High Bay Fixture | 120 – 277V Input | Frosted Lens |
0 –10V Dimming | Premium Series

PRODUCT FEATURES
• Powered by Keystone 0 –10V dimming LED drivers
• Smooth diffused lens for an even appearance
• 0–10V Dimming, Dim-to-off
• Compatible with Keystone SmartSafe emergency LED drivers
• Compatible with Keystone 480 – 277V step down
transformers
• Built in port to accept Quick install Keystone sensor (KTS-
MW3-12V-PKO & KTS-PIR3-12V-PKO.) NO wiring required
• Ambient operating temperature: −40ºC/−40ºF to 50ºC/122ºF
• UL Listed 1598: Suitable for damp locations
• THD: < 20% • Power factor > 0.95
• LED chip lifetime: L70 >100,000 hrs @ 25Cº/77Fº ambient fixture
temp.
• DLC Premium Listed
• Architectural grade compact design
• Frosted lens eliminates glare
• V-hook and chain mounting accessories included
• Compatible with Keystone SmartSafe emergency LED drivers; KT-
EMRG-LED-12C-1200-EN /DF and KT-EMRG-LED-20SD-2000-EN /
DF are optimal for fixture level installation; mounting kit KT-HBLED-
EM-BR-1B-KIT required (sold separately)

POWER AND COLOR TEMPERATURE
SELECTABILITY
• Keystone Color Select Technology: Adjustable
CCT (4000K/5000K)
• Keystone Power Select Technology: Adjustable
Wattage (215W/175W/135W)
